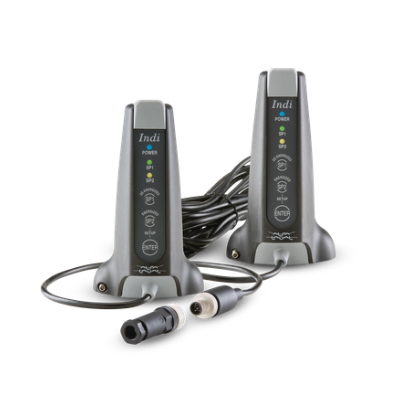

• Alfa Laval IndiTop Digital Incl. 5m Cable, 8-30 VDC/AC, Compatible With 25mm-101.6 mm/DIN-25/DIN-150 Valves

Alfa Laval IndiTop Digital Incl. 5m Cable, 8-30 VDC/AC, Compatible With 25mm-101.6 mm/DIN-25/DIN-150 Valves

£379.89
£379.89
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Product Type – IndiTop Digital

The IndiTop is compatible with all valves excluding the following: Unique Mixproof U/L seat lift), Unique SSV Aseptic, Unique Mixproof, SMP-BC, SMP-SC, LKLA-T (LKB), Shutter Valve, SBV.

The Alfa Laval IndiTop is a digital valve indication unit that offers reliable, cost-effective operation and standard functionality for automated sensing of hygienic valves. The IndiTop provides real-time information about valve operating status 24/7 while boosting productivity and securing traceability.

IndiTop valve sensing unit's consists of a proven no-touch, set-and-forget sensor system with light-emitting diodes (LEDs) and an encapsulated cable for connection to any programmable logic controller (PLC) system with a digital interface. It fits on majority of Alfa Laval hygienic valves; no adapter is required.

Specifications

Digital interface type PNP/NPN
Including 5m Cable
Load max 50 mA
Model IndiTop Digital
Supply voltage 8-30 VDC/AC
Valve sizes 25mm-101.6 mm/DIN-25/DIN-150 Valves
Alfa Laval IndiTop Digital Incl. 5m Cable, 8-30 VDC/AC, Compatible With 25mm-101.6 mm/DIN-25/DIN-150 Valves

£379.89
