Product Type – Aseptic Unique Single Seat Valve

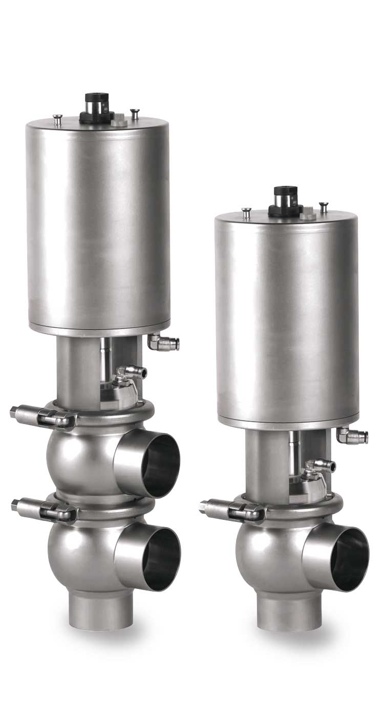

The Alfa Laval Unique SSV aseptic valve is used sterile process applications across the dairy, food, beverage, brewery, biotechnology, pharmaceutical and many other industries. It is A one-piece diaphragm provides hermetic sealing against intrusion from the atmosphere, ensuring full protection against the effects of microorganisms during processing. The special diaphragm offers modularity as it can be used with a broad range of the Unique SSV configurations – including standard, tangential, two-step, manual and tank outlet valves.

Specifications

Actuator function Normally Closed
Actuator type Aseptic
Body port Body Type 220
Certification 3A
Connection standard ISO
Elastomer EPDM
End connection Weld/Weld/Weld/Weld
Material 316L
Model Aseptic SSV
Surface finish 0.8/Blasted (Int./Ext.)
Valve function Change Over
